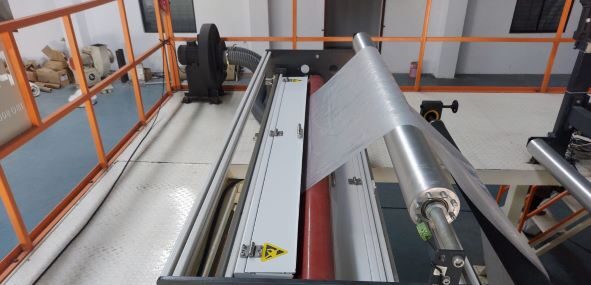

Multilayer / Wide width web treaters |
|
Multilayer / Wide width web treaters are both side treater with max. length from 1300mm to 5000mm as per customer's requirement. In this type of Wide width Web treaters treatment rollers are covered with silicone rubber sleeves and treaters are Pneumatically oprated. |
|
 |
|
Multilayer Corona Treater Features |
|
 |
Pneumatically operated hinged type assembly. |
 |
Ozone Extraction System |
 |
Tower Light on the Treater Station to display Fault Condition of Corona Generator |
 |
Statically and dynamically balanced backing roll |
 |
External Air Gap Adjustment |
 |
Easy film thread-up, maintenance and cleaning |
|
|
|
 |
IGBT based Technology |
 |
Soft Start & High Frequency Operation |
 |
Output Power : 5Kw - 15 Kw |
 |
Output Voltage : 12 KV |
 |
Output Frequency: 15-30 KHz. |
 |
Input Voltage: 3 Phase, 440 Volts. / 50Hz |
 |
Short Circuit Proof |
` |
Overload Protection with Alarm |
 |
‘0’ Speed Switch |
 |
Plug & Socket Connection for Easy Installation |
|
|
 |
|
